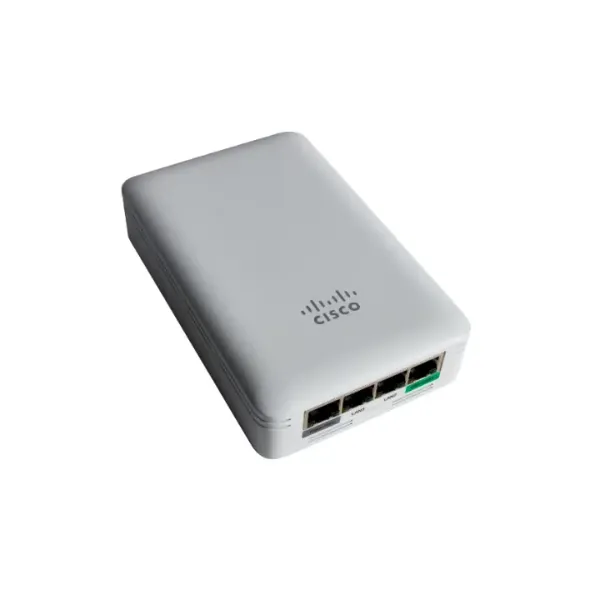

Cisco AIR-AP1815W-S-K9 – Bộ phát Wifi

-  2.4 GHz, gain 2 dBi

-  5 GHz, gain 3 dBi

-  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

-  Management console port (4-pin connector)

-  Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:

◦   PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af

-  One passive pass-through port RJ-45 (back to bottom)

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

-  Operating

◦   Temperature: 32° to 104°F (0° to 40°C)

◦   Humidity: 10% to 90% (non-condensing)

◦   Max. altitude: 9843 ft (3,000 m) @ 40°C

-  Non-operating (storage and transportation)

◦   Temperature: -22° to 158°F (-30° to 70°C)

◦   Humidity: 10% to 90% (non-condensing)

◦   Max. altitude: 15,000 ft (4,500 m) @ 25°C

-  1 GB DRAM

-  256 MB flash

-  710 MHz quad-core

-  802.3af/at Ethernet switch

-  Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

-  8.5W (maximum, without PoE out)

-  Torx security screw, included with the access point

-  Kensington lock slot to lock device to mounting bracket.

-  Mounting bracket: AIR-AP-BRACKET-W3= (available as spare)

-  Spacer kit: AIR-AP1815W-KIT= (sold separately), includes spacer and RJ-45 jumper cable

-  Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

-  Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1

-  Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385

-  IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac

-  Security: 802.11i, WPA2, WPA, 802.1X, AES

-  Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)

-  Multimedia: Wi-Fi Multimedia (WMM)

-  Other: FCC Bulletin OET-65C, RSS-102

-  Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

-  802.1X, RADIUS authentication, authorization and accounting (AAA)

-  802.11r

-  802.11i

-  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later

-  Cisco Mobility Express

-  2x2 single-user/multiuser MIMO with two spatial streams

-  Maximal ratio combining (MRC)

-  20-, 40-, and 80-MHz channels

-  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

-  802.11 Dynamic Frequency Selection (DFS)

-  Cyclic shift diversity (CSD) support

-  Authentication with 802.1X or MAC filtered

-  Dynamic VLAN or per port

-  Traffic locally switched or tunneled back to wireless LAN controller
