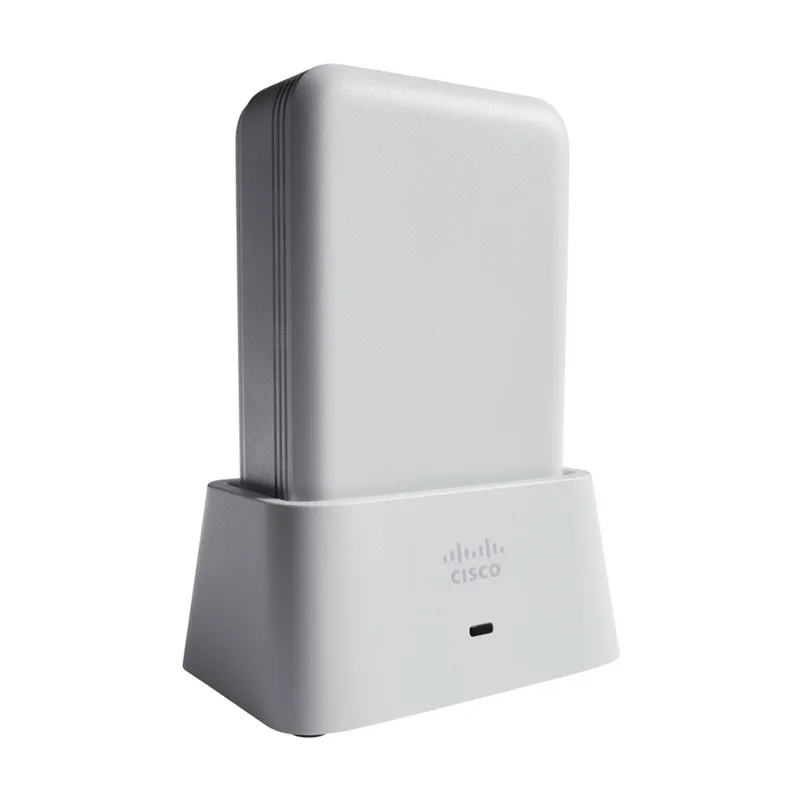

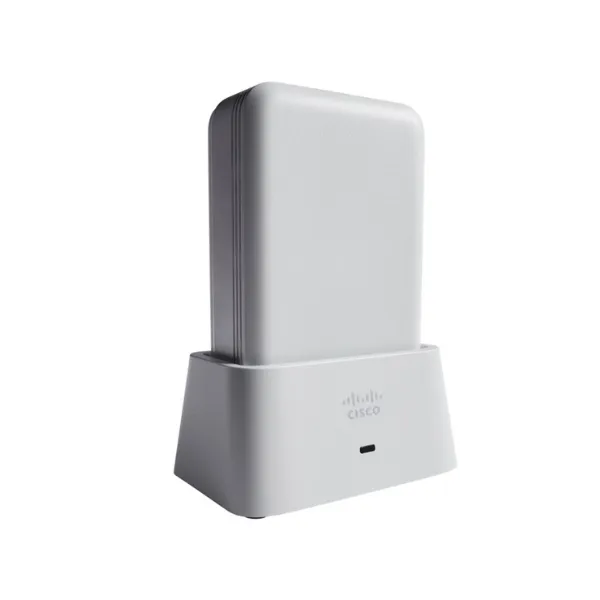

Cisco AIR-AP1810W-E-K9 – Bộ phát Wifi

Product Code

AIR-AP1810W-H-K9

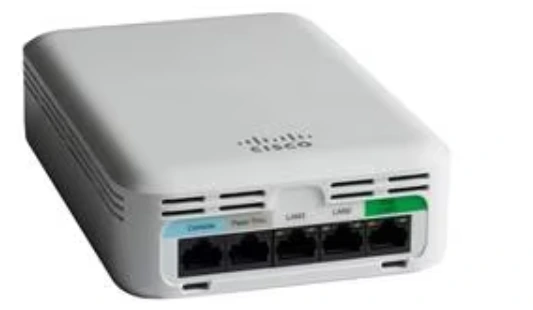

Interfaces

– 1 × 10/100/1000BASE-T PoE uplink port

– 1 × Management console port (RJ-45)

– 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port

– 1 × passive pass-through port RJ-45 (back to bottom)

– 1 × DC power connector

Features

2×2 single-user/multiuser MIMO with two spatial streams

Maximal ratio combining (MRC)

20-, 40- and 80-MHz channels

PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

802.11 Dynamic Frequency Selection (DFS)

Cyclic shift diversity (CSD) support

Regulatory Domain

A (A regulatory domain):

– 2.412 to 2.462 GHz; 11 channels

– 5.180 to 5.320 GHz; 8 channels

– 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

– 5.745 to 5.825 GHz; 5 channels

System

– 512 MB DRAM

– 256 MB flash

– 1.4 GHz system dual-core CPU

Dimensions (W x L x H)

165 x 114 x 41 mm (Access point without mounting bracket))

Weight

560g (Access point without mounting bracket or any other accessories)
