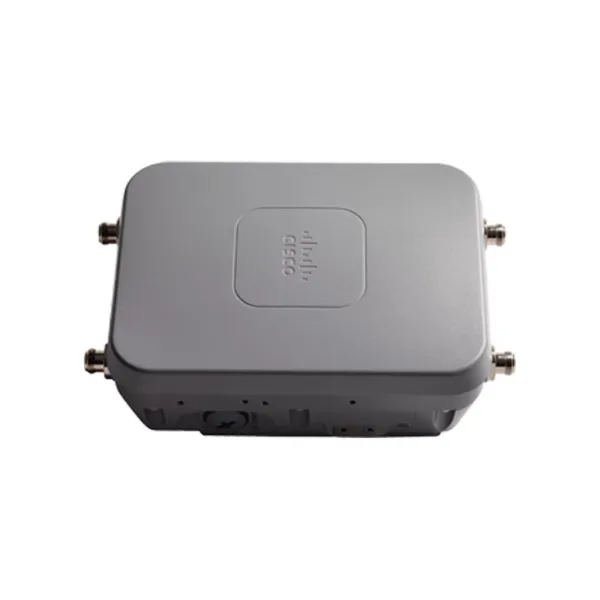

Cisco AIR-AP1562E-S-K9 – Bộ phát Wifi

Part Number

AIR-AP1562E-S-K9

Description

802.11ac Wave 2 Low-Profile Outdoor AP, External Antenna, S Regulatory Domain

Features

• 2 x 2 MIMO with two spatial streams
• Multi- and single-user MIMO
• Maximal ratio combining (MRC)
• 802.11ac beamforming (transmit beamforming)
• 20-, 40-, and 80-MHz channels
• PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 dynamic frequency selection (DFS)
• Cyclic-shift-diversity (CSD) support

Interfaces

• WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in
• SFP port (fiber or electrical)
• Management console port (RJ-45)
• Multicolor LED
• DC power input
• Reset button

Dimensions (L x W x H)

9.0 x 6.8 x 3.9 in. (22.9 x 17.1 x 9.8 cm)

Weight

5.6 lb (2.5 kg)

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

1.3 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2

Network / Transport Protocol

L2TP, IPSec

Frequency Band

2.4 GHz, 5 GHz

Capacity

Spatial streams: 2

Features

Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic path selection (DPS), MAC address authentication

Encryption Algorithm

LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2

Authentication Method

X.509 certificates, Extensible Authentication Protocol (EAP)

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2

Antenna

Antenna

External detachable

Expansion / Connectivity

Interfaces

1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x - SFP (mini-GBIC) ¦ 1 x management - RJ-45 ¦ 4 x antenna - F connector

Miscellaneous

Compliant Standards

EN 60950, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893

Power

Power Over Ethernet (PoE) Supported

UPOE

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

-40 °F

Max Operating Temperature

131 °F
