Part Number
|

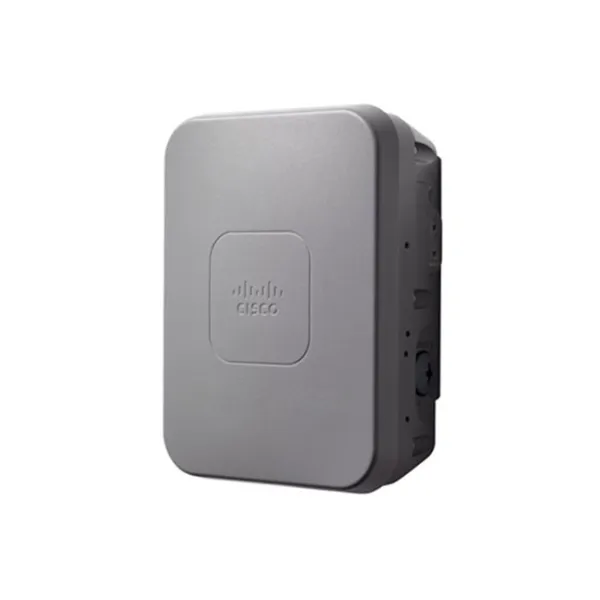

AIR-AP1562D-S-K9
|
|
Description
|
802.11ac Wave 2 Low-Profile Outdoor AP, Directional Antenna, E Regulatory Domain
|
|
Features
|
- 2 x 2 MIMO with two spatial streams
- Multi- and single-user MIMO
- Maximal ratio combining (MRC)
- 802.11ac beamforming (transmit beamforming)
- 20-, 40-, and 80-MHz channels
- PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
- Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
- 802.11 dynamic frequency selection (DFS)
- Cyclic-shift-diversity (CSD) support
|
|
Interfaces
|
- WAN port 10/100/1000BASE-TEthernet,autosensing (RJ-45), PoE in
- SFP port (fiber or electrical)
- Management console port (RJ-45)
- Multicolor LED
- DC power input
- Reset button
|
|
Dimensions (L x W x H)
|
9.0 x 6.8 x 4.3 in. (22.9 x 17.1 x 10.9 cm)
|
|
Weight
|
5.7 lb (2.6 kg)
|
|
Networking
|
|
Form Factor
|
External
|
|
Connectivity Technology
|
Wireless
|
|
Data Transfer Rate
|
1.3 Gbps
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2
|
|
Network / Transport Protocol
|
L2TP, IPSec
|
|
Frequency Band
|
2.4 GHz, 5 GHz
|
|
Features
|
Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, Cisco Flexible Antenna Port technology, beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, High Density Experience (HDX)
|
|
Encryption Algorithm
|
LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2
|
|
Authentication Method
|
X.509 certificates, Extensible Authentication Protocol (EAP)
|
|
Compliant Standards
|
IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
|
|
Antenna
|
|
Antenna
|
Internal
|
|
Expansion / Connectivity
|
|
Interfaces
|
1 x 1000Base-T (PoE) - RJ-45 (WAN) ¦ 1 x - SFP (mini-GBIC) (WAN) ¦ 1 x console - RJ-45
|
|
Miscellaneous
|
|
Compliant Standards
|
EN 60950, ICES-003, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, X.509, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301489-17, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893
|
|
Power
|
|
Power Over Ethernet (PoE) Supported
|
PoE+
|
|
Manufacturer Warranty
|
|
Service & Support
|
Limited warranty - 1 year
|
|
Environmental Parameters
|
|
Min Operating Temperature
|
-40 °F
|
|
Max Operating Temperature
|
149 °F
|
