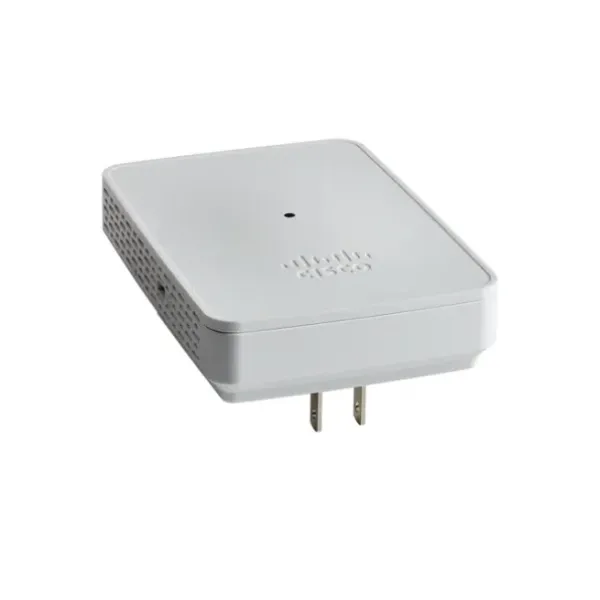

Cisco CBW142ACM-S-EU – Bộ mở rộng sóng Wifi

Model

CBW142ACM-S-EU

Product specifications

Ethernet Ports

None

PoE Output

802.3af: 15.4W at port

Dimensions

Access point (without mounting bracket): 3.25 x 4.5 x 0.75 in (82.5 x 114 x 19 mm)

Power Input

5V 2A DC

Power Draw

8.5W (maximum, without PoE)

Weight

Access point without mounting bracket or any other accessories: 10 oz (280 g)

Specifications and requirements

Requirements

Requires a Cisco Business access point within the network for mesh connectivity

Authentication and security

Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)

802.1X, RADIUS authentication, authorization, and accounting (AAA)

802.11r and 802.11i

Maximum clients

Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point

802.11ac

2x2 MU-MIMO with two spatial streams, up to 867 Mbps

20-, 40-, and 80-MHz channels

Dynamic Frequency Selection (DFS)

Ethernet ports

Refer to Table 2

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 5 and 4 Mbps
802.11n data rates on 2.4 GHz: 6.5 to 144 Mbps (MCS0-MCS15)
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Available transmit power settings

Available transmit power settings
5 GHz Up to 20 dBm

Integrated antennas

2.4 GHz, gain 2 dBi
5 GHz, gain 3 dBi

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Environmental

Operating

- Temperature: 32° to 104°F (0° to 50°C)

- Humidity: 10% to 90% (noncondensing)

- Maximum altitude: 9843 ft (3000 m) at 104°F (40°C)

Nonoperating (storage and transportation)

- Temperature: -22° to 158°F (-30° to 70°C)

- Humidity: 10% to 90% (noncondensing)

- Maximum altitude: 15,000 ft (4500 m) at 77°F (25°C)

System

512 MB DRAM, 128 MB flash

710-MHz quad-core processor

PoE output

802.3af: 15.4W at port

Physical security

Kensington lock slot

Warranty

Cisco Business limited lifetime hardware warranty
Free software updates, no service contract required
