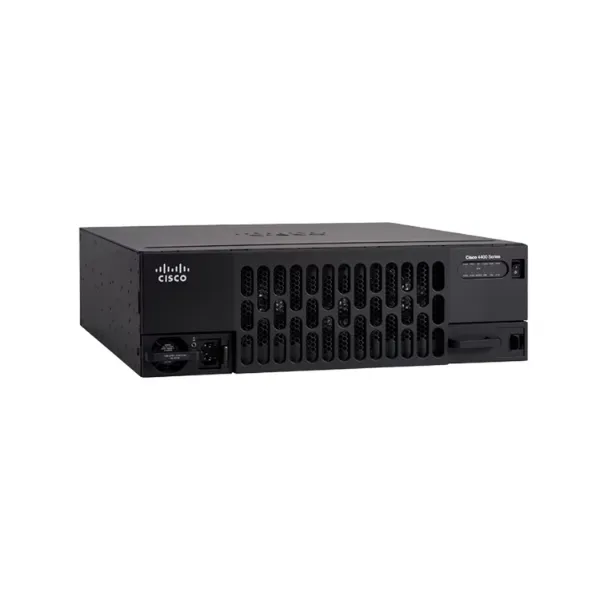

Cisco ISR4461-SEC/K9 – Bộ định tuyến

Model

Cisco ISR4461-SEC/K9

Aggregate Throughput

1.5Gbps

Aggregate Throughput (Performance License)

3Gbps

Aggregate CEF Only Throughput (Boost License)

Over 7Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

Total onboard WAN or LAN 10Gbps ports

2

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slot

3

NIM (Network Interface Modules) slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory DDR3 ECC DRAM (data plane)

4 GB

Maximum memory DDR3 ECC DRAM (data plane)

4 GB

Default memory DDR3 ECC DRAM (control/services plane)

8 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

32 GB

Flash Memory

8 GB (default) / 32 GB (maximum)

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45 (up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC (roadmap) and PoE

Redundant power supply

Internal: AC, DC and PoE

Power Specifications

AC input voltage

100 to 240 VAC autoranging

DC Input Voltage

Input Voltage

Input Current

48 – 60V

12A Max

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Maximum power with AC power supply (watts)

1000W (no PoE)

Maximum power with DC power supply (watts)

437 (no PoE)

Maximum power with PoE power supply (platform only) (watts)

1000 with PoE redundant

1450 with PoE boost no redundancy

Maximum endpoint PoE power available from PoE power supply (watts)

500 W with optional redundancy

Maximum endpoint PoE power capacity with PoE boost (watts)

950 W no redundancy

Sizes and Weights

Dimensions (H x W x D)

3.5 x 17.25 x 18.5 in

(88.9 x 438.15 x 469.9 mm)

Shipping Box Dimensions (H x W x D)

9.75 x 22.25 x 26 in

(24.76 x 56.51 x 66.04 mm)

Rack-mount 19in. (48.3 cm) EIA

Included

Rack-mount 23in. (58.4 cm) EIA

Optional

Airflow

I/O side to bezel side

MTBF (Hours)

480770

Operating Conditions

Temperature

32 to 104ºF (0 to 40ºC)

Altitude

0 – 10,000 ft (0 – 3,050 m)

Relative humidity

5% to 85%

Short-term humidity

5% to 90%, not to exceed 0.024 kg water/kg of dry air

Acoustics: Sound pressure (Typical/ maximum)

50.6/73.1 dBA

Acoustics: Sound power (Typical/ maximum)

58.2/78.8 dBA

Nonoperating Conditions

Temperature

-40 to 158ºF (-40 to 70ºC)

Relative humidity

5% to 95%

Altitude

15,584 ft (4750m)
