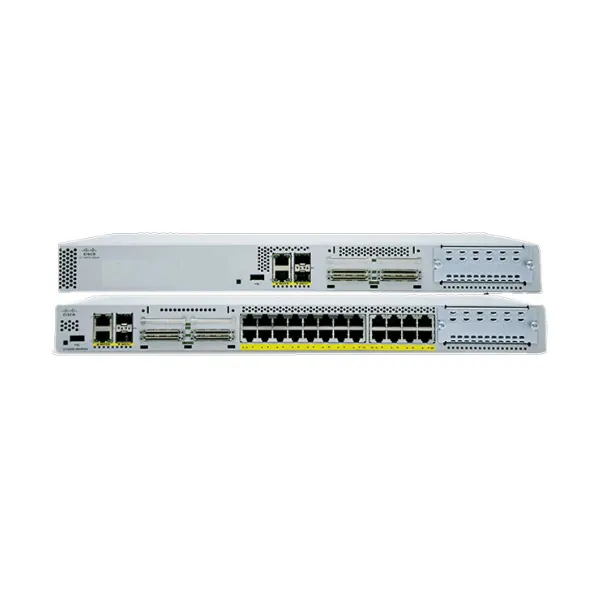

Cisco C1100TG-1N32A – Bộ định tuyến

Specifications

Aggregate throughput (Cisco Express Forwarding)

500 Mbps

Aggregate throughput (IPsec)

100 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2 WAN (GE/SFP)

RJ45-based ports

2 WAN (GE/SFP)

SFP-based ports

2

NIM slots

1

Daughter card

1x 16-port

OIR (all I/O modules)

Yes for NIMs

Default memory DRAM

2 GB DDR4

Default flash memory

4 GB

External USB 3.0/2.0 slots

1 / 1

Power-supply options

Internal AC or DC support

High availability for power supply

External AC only

AC input voltage

100 to 240V AC autoranging

DC input voltage

Input voltage

48 to 60V

Input current

4.2A

HVDC power supply unit

Input voltage

180 to 240V

Input current

0.9A

AC input frequency

50 to 60 Hz

AC input current, AC power supply

1.6A

AC input surge current

1.2/50 us, 1kV L-N/2kV L-PE and N-PE

Typical power (no modules)

30W

Maximum power with AC power supply

80W (no PoE)

Maximum power with DC power supply

80W (no PoE)

Dimensions (H x W x D)

1.73 x 17.5 x 12 in. (44 x 444 x 305 mm)

External power supply dimensions (H x W x D)

2.9 x 1.2 x 6.1 in. (75 x 30 x 155 mm)

Rack height

1 rack unit

Packaging weight

14.0 lb (6.35 kg)

Airflow

I/O side to fan side

Mean Time Between Failures (MTBF) (hours) at 25°C

739 252 hours

Temperature

32° to 104°F (0° to 40°C)

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1

EN 60950-1

AS/NZS 60950.1

IEC 60950-1

GB-4943

UL 62368-1

CAN/CSA C22.2 No. 62368-1

EN 62368-1

AS/NZS 62368.1

IEC 62368-1

EMC

ICES-003 Class A

EN55022 Class A

CISPR22 Class A

AS/NZS 3548 Class A

VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024, CISPR 24

EN50082-1

KN22, KN24

Architectural highlights

Multicore processors

High-performance multicore processors support high-speed WAN connections. The data plane uses an emulated flow processor (FP) that delivers application-specific integrated circuit (ASIC)-like performance that does not degrade as services are added.

Serial port data rates

1200, 2400, 4800, 9600 (default), 19,200, 38,400, 57,600, 115,200, and 230,000 bps

Parity: None, even, or odd parity

Bit support: 8-bit characters. 1 start bit, 1 stop bit

Security support

Hardware-based IPsec support, Internet Key Exchange (IKE) v1 and v2, Encapsulating Security Payload (ESP)

Encryption: Advanced Encryption Standard (AES) (256/192/128), Triple Data Encryption Standard (3DES), DES

Integrity (hash): Secure Hash Algorithm (SHA), SHA-256, SHA-384, SHA-512, Suite B, MD5 HMAC

Transport Layer Security (TLS) v1.2, v1.1, and v1.0; Secure Sockets Layer (SSL) v3.0 and v2.0

Secure Shell (SSH) v1 and v2

Diffie Hellman (DH): 768-bit, 1024-bit, 1536-bit, 2048-bit, 3072-bit, and 4096-bit DH groups, 2048-bit DH group with a 256-bit subgroup, and 256-bit and 384-bit Elliptic Curve DH (ECDH).

Cert (CA support): X.509 v3, RSA, DSA

Authentication, Authorization, and Accounting (AAA): RADIUS, TACACS+ integration with Lightweight Directory Access Protocol (LDAP), Kerberos

Simple Network Management Protocol (SNMP) v2, v3

Network perimeter security with integrated application inspection firewall

Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit)

Integrated Gigabit Ethernet ports

Provides up to two built-in 10/100/1000 Ethernet ports for WAN or LAN.

The 10/100/1000 Ethernet ports can support SFP-based connectivity in addition to RJ45 connections, enabling fiber or copper connectivity.

Optional High Availability power supply

High availability for power is achieved by using an optional external AC power supply to reduce network downtime and protect the network from power failures.

Both power supplies may be connected to the mains. Upon failure of the internal power supply, the external (AC only) power supply automatically takes over.

Serial protocol support

Point-to-Point Protocol (PPP), Password Authentication Protocol (PAP), and Challenge Handshake Authentication Protocol (CHAP), Serial Line Internet Protocol (SLIP), X.25/ X.25 over TCP (XOT), Layer 2 Tunneling Protocol (L2TP) v3, L2TP Network Server (LNS)

Control and flow signals

Control signals: Clear to Send (CTS), Request to Send (RTS), Data Terminal Ready (DTR), Data Carrier Detect (DCD)

Flow control: XON/XOFF (software), CTS/RTS (hardware)

Cisco network interface modules (NIMs)

A single integrated NIM slot allows for flexible configurations. Refer to Table 4 for supported NIM modules.

The NIM slot offers high-data-throughput capability to the route processor and to the asynchronous interfaces, switch ports.

NIMs support OIR

Flash memory support

Fixed flash memory with support for 4-GB flash; 8-GB flash for the TGX model.

USB Type A 3.0 port (rear side) provides capabilities for storage

USB Type A 2.0 port (front side) provide capabilities for USB dongle.

DRAM (DDR4)

The default control-plane memory is 4 GB,

DRAM and flash memory are provided as fixed configuration and are not field replaceable or upgradable.

Async cable bracket

One, included with the C1100 TSG for up to 48 ports (32 onboard + 16 on the daughter card)

LED support (on chassis)

6 Async Status, 1 System Status

Console/Aux and Ground

1 Console and 1 Aux port; 1 ground connection (all on the rear panel)

Fan support

3 fans on the rear panel (for C1100TG-1N24P32A). Fans are not field replaceable.

2 fans on the rear panel (for C1100TG-1N32A). Fans are not field replaceable.
