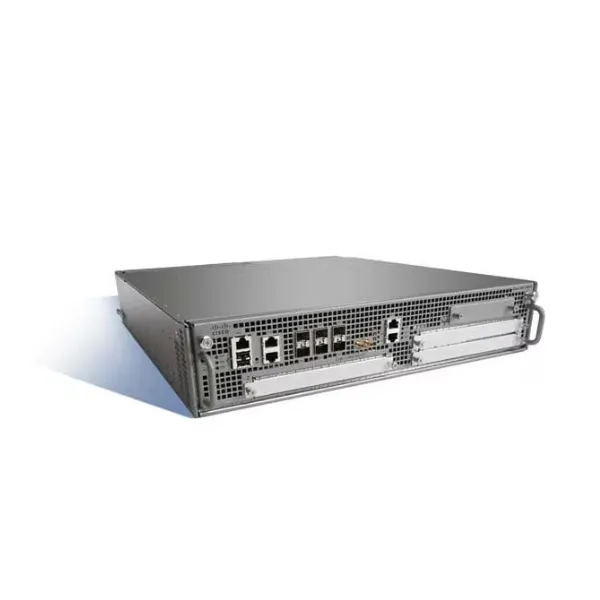

Cisco ASR1002-HX – Bộ định tuyến

Product Code

Cisco ASR1002-HX=

Physical specifications

Height: 3.5 in. (88.9 mm)
Width: 17.3 in. (439.4 mm)
Depth: 19.25 in. (489.0 mm)

Weight:

●  34 lb (15.45 kg) (with dual AC power supplies)
●  34 lb (15.45 kg) (with dual DC power supplies)

Default memory

16-GB DRAM shared across route processor, ESP, and MIP

Number of SIPs or Ethernet line cards supported

Integrated in chassis

Shared port adapters

N/A

Ethernet port adapters

1 EPA slot

Cisco ASR 1000 Series ESP

Integrated in chassis

Route processor

Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor

Redundancy

Software: Yes

Built-in Gigabit Ethernet ports

Yes: 8 Gigabit Ethernet SFP ports

Built-in 10 Gigabit Ethernet port

Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note: Built-in 10-GB ports cannot be reduced to 1-GB speed.

Network interface module

Yes

Processor Module

ESP support

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent

ESP bandwidth

100 Gbps

ESP memory

Share the same control memory on route processor

SIPs and Ethernet line cards

Integrated in chassis; not upgradable

Embedded hardware-based encryption
(highest throughput numbers are for 1400B packets)

Yes: Up to 25-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 16.2.1S

Rack-mounting

Yes: 19-inch

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Dual power supplies by default; option of either AC or DC power supply
Note: A mix of one AC and one DC power supply is not supported.

Power input

Worldwide ranging AC input range (85 to 264 VAC)
Worldwide ranging DC:(-40 to -72V; 48V nominal)

Power consumption

●  Maximum (DC): 500W
●  Maximum (AC): 500W

Airflow

Front-to-back

Operating temperature (nominal)

32 to 104°F (0 to 40°C)

Operating temperature (short-term)

32 to 122°F (0 to 50°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity (short-term)

5 to 90%

Storage temperature

-40 to 150°F (-40 to 70°C)

Storage humidity (relative humidity)

5 to 95%

Operating altitude

-500 to 10,000 feet
(152 to 3048 meters)

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63 (in progress)
